Dealjas

40X-2500X Binocular Lab Compound Microscope with 3D Mechanical Stage LED

40X-2500X Binocular Lab Compound Microscope with 3D Mechanical Stage LED

$299.97 USD
$299.97 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

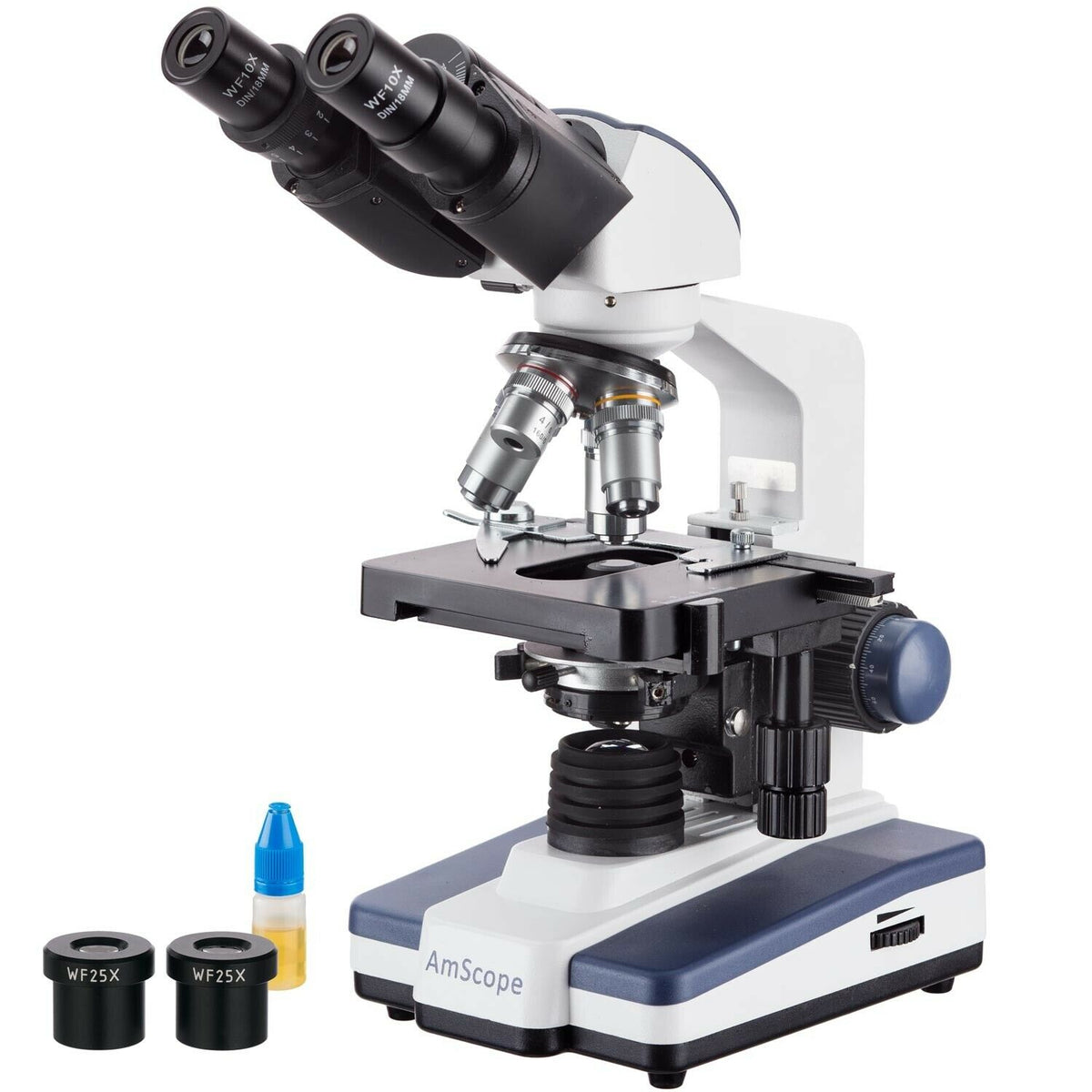

40X-2500X Binocular Lab Compound Microscope with 3D Mechanical Stage LED





Our new binocular compound microscope is designed for teaching demonstrations, clinical examinations and laboratory applications. It is a perfect microscope for professionals, teachers and students including those in medical school or with a major in biology.





It comes with a Siedentopf binocular head, double layer mechanical stage with course fine focusing and a LED illumination system.





There are six magnification settings: 40X, 100X, 250X, 400X, 1000X & 2500X. This microscope is an ideal instrument for bacterial, biological, and pharmaceutical researches.





Features

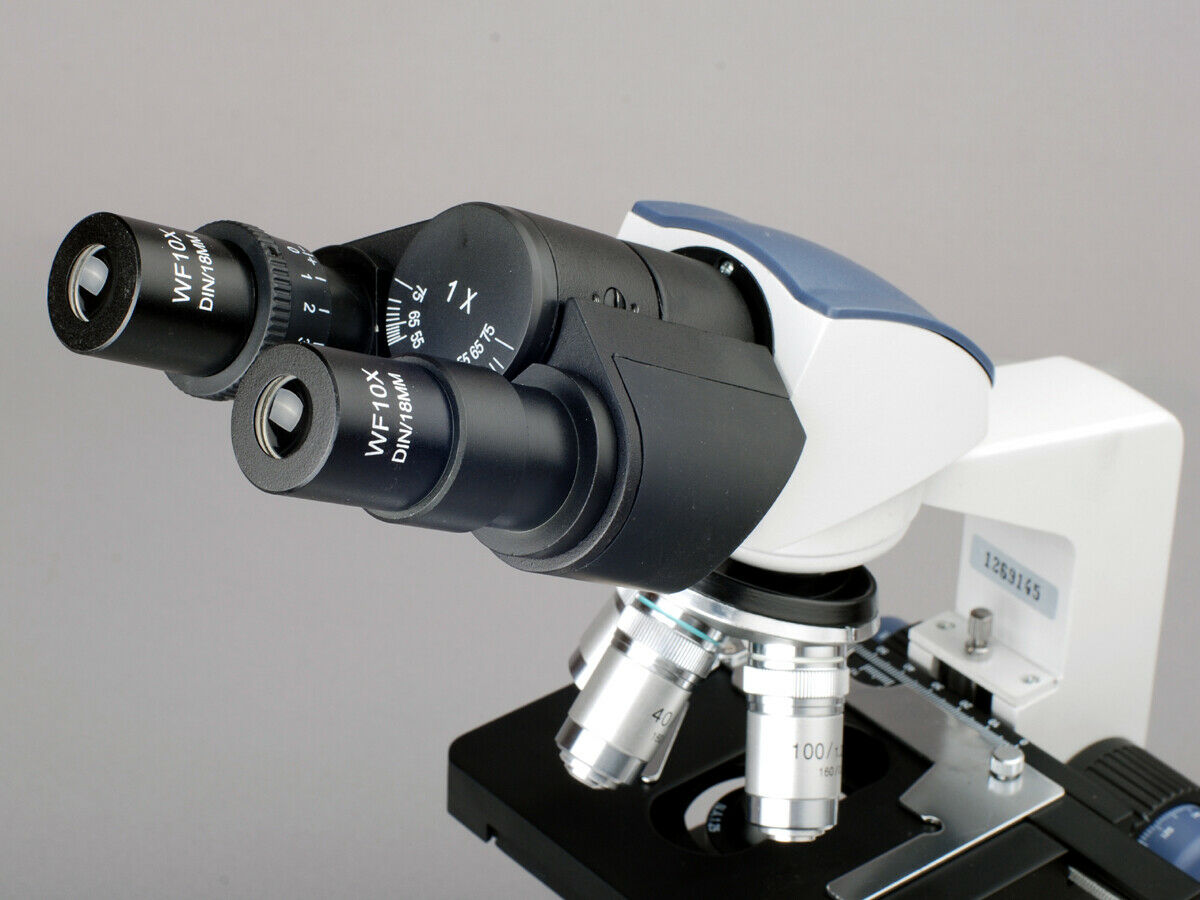

  • 30 degree inclined 360 degree swiveling Siedentopf binocular head
  • High quality precise optical glass elements
  • Easy to attach a microscope camera or digital imager
  • Six magnification settings, 40X, 100X, 250X, 400X, 1000X & 2500X
  • Four Achromatic objectives, DIN 4X, 10X, 40X(S), 100X(S,Oil)
  • Two pairs of widefield eyepieces: WF10X and WF25X
  • Adjustable interpupillary distance
  • Adjustable ocular diopter
  • Variable intensity illumination
  • Coaxial coarse and fine focus adjustment
  • Focusing knobs are on both sides
  • Stage upward moving lock protects objectives and slides
  • Stain-resistant double layer mechanical stage
  • NA1.25 Abbe Condenser with iris diaphragm & filters
  • Rack and pinion adjustment condenser
  • Manufactured under ISO 9001 Quality Control Standard
Specifications
  • Eyepieces: widefield, WF10X and WF25X
  • Objectives: Achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil)
  • Head: 30 degree inclined 360 degree swiveling binocular
  • Interpupillary distance: 2-1/8" - 3-1/8" (53mm - 77mm)
  • Adjustable ocular diopter
  • Nosepiece: revolving quadruple
  • Mechanical Stage: 3-D double layer
  • - Size: 4-5/8" x 5" (118mm x 127mm)
  • - Travel Range (X-Y): 2-13/16" x 1-3/16" (70mm x 30mm)
  • Condenser: NA1.25 Abbe condenser with iris diaphragm
  • Illumination: LED light, transmitted, intensity adjustable, GS and CE approved
  • Focusing: coaxial coarse & fine knobs on both sides
  • Power Supply: 100-240VAC, 50/60Hz, AC/DC adapter (UL approved) Included
  • Dimension: 11" x 7" x 13-3/4" (280mm x 178mm x 350mm)





Package includes
  • One Siedentopf Binocular Microscope Head
  • One Microscope Body Frame with Double Layer Mechanical Stage and LED Illumination
  • Four DIN Standard Objectives, 4X, 10X, 40X and 100X
  • One Pair of Widefield 10X Eyepieces
  • One Pair of Widefield 25X Eyepieces
  • One Blue Color Filter
  • One Dust Cover
  • Sample Immersion Oil
  • User's Manual Download
  • Net weight: 11 lbs
  • Shipping weight: 13 lbs
